Broadband Dielectric Multilayer Mirror
This broadband dielectric multilayer mirror has two types of oxide dielectric
alternate multilayer films with different refractive indices that were
vapor deposited on a flat substrate using ion-assisted film-forming technology.
This product is easy to handle due to a high reflectivity of 99% and above
in comparison to metal mirrors, and an equivalent mirror surface solidity
to glass.
Features
- High reflectivity of 99 % at specific single wavelength
- Capability to use an incident angle range of 0-45 degrees
- High reflectance from both P and S polarized lights
- Almost no deterioration due to aging
- Capability to be used under high temperature and high humidity
- High CW laser proof stress due to almost no absorption loss in comparison to metal mirrors
Brochure
|
|
|
Typical Specifications
| Model |
BBMR-400/1200 |
BBMR-600/1700 |
| Wavelength Range |
400 - 1200nm |
600 - 1700nm |
| Reflectance |
> 99 % |
| Incidence Angle |
0 - 50 degrees |
| Size |
Φ30 x 5tmm, Φ25.4 x 5tmm |
| Substrate |
Quartz |
| Substrate Surface Precision |
λ/10 @ 632.8nm |
| Parallelism |
Within 3 minutes |
| Effective Diameter |
80% of the actual diameter |
|

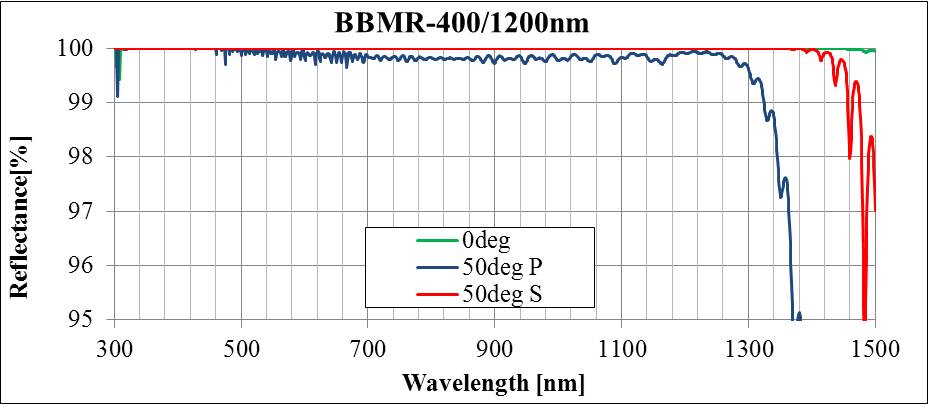

Wavelength Characteristics of Reflectance (1)
* Wavelength Range: 400 - 1200nm
(Click to enlarge)

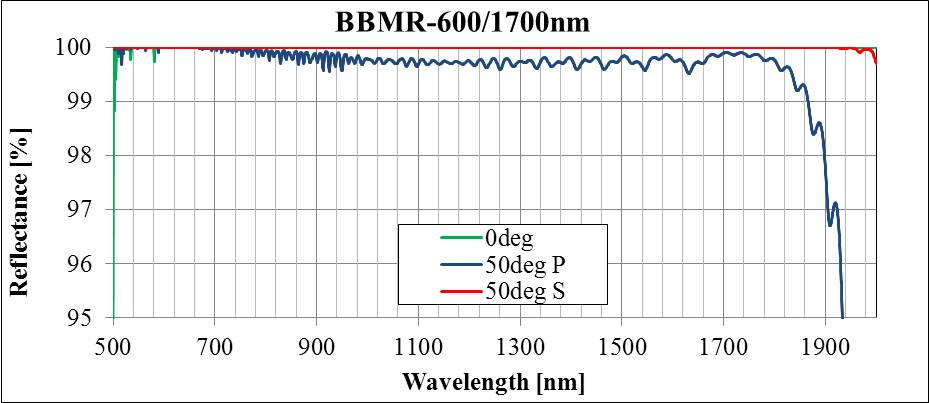

Wavelength Characteristics of Reflectance (2)
* Wavelength Range: 600 - 1700nm
(Click to enlarge)
Ordering Instructions
|
- Broadband Dielectric Multilayer Mirror |
|
1) Product: |
Broadband Dielectric Multilayer Mirror |
|
Order format example: |
BBMR-400 / 1200-B |
| (1) Wavelength |
400/1200: 400 - 1200nm__600/1700: 600 - 1700nm |
| (2) External Diameter of Substrates |
A: Φ30mm B: Φ25.4mm (1inch) |
|
|
|
|
|
|
|
|
Narrowband Dielectric Multilayer Mirror
This Narrowband dielectric multilayer mirror has two types of oxide dielectric
alternate multilayer films with different refractive indices that were
vapor deposited on a flat substrate using ion-assisted film-forming technology.
This product is easy to handle due to a high reflectivity of 99% and above in comparison to metal mirrors, and an equivalent mirror surface solidity to glass.
Features
- High reflectivity of 99 % at specific single wavelength
- Capability to use an incident angle range of 0-45 degrees
- High reflectance from both P and S polarized lights
- Almost no deterioration due to aging
- Capability to be used under high temperature and high humidity
- High CW laser proof stress due to almost no absorption loss in comparison to metal mirrors
Brochure
|
|
 |
Typical Specifications
| Model |
NBMR-532 |
NBMR-1064 |
| Wavelength Range |
532+/-5nm |
1064+/-5nm |
| Reflectance |
> 99% |
| Incidence Angle |
0 - 45 degrees |

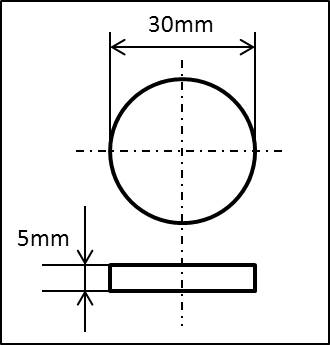

| Size |
Φ30 x 5tmm |
| Substrate |
Quartz |
| Substrate Surface Precision |
λ/10 @ 632.8nm |
| Parallelism |
Within 3 minutes |
| Effective Diameter |
80% of the actual diameter |
|

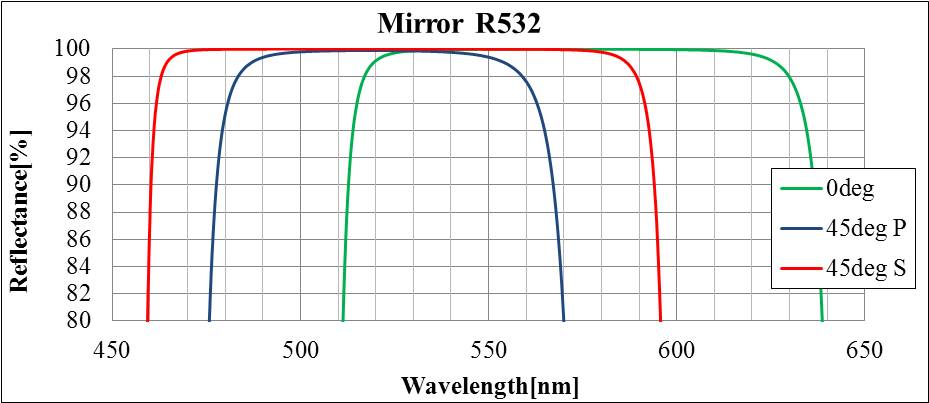

Wavelength Characteristics of Reflectance (1)
* Wavelength Range: 532+/-5nm
(Click to enlarge)

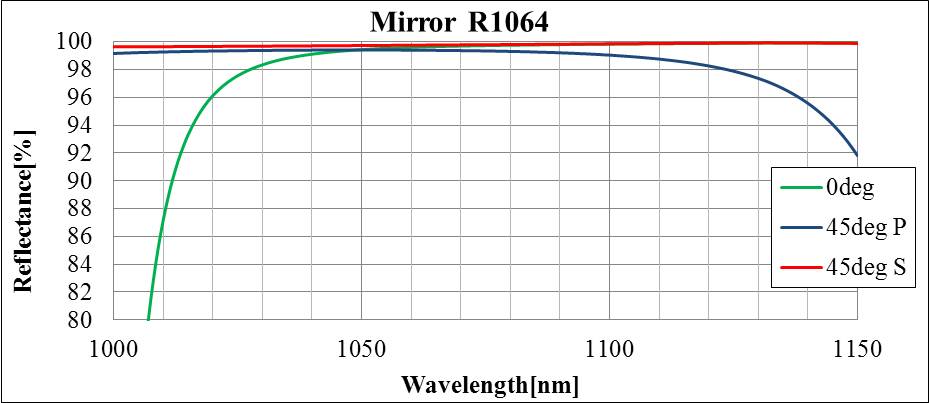

Wavelength Characteristics of Reflectance (2)
* Wavelength Range: 1064+/-5nm
(Click to enlarge)
Ordering Instructions
|
- Narrowband Multilayer Mirror |
| (1) Wavelength |
532: 532nm 1064: 1064nm |
| (2) External Diameter of Substrates |
A: Φ30mm |
|
|
|
|
|
|
|
|
Multiband Dielectric Multilayer Mirror
This Multiband dielectric multilayer mirror has two types of oxide dielectric
alternate multilayer films with different refractive indices that were
vapor deposited on a flat substrate using ion-assisted film-forming technology.
This product is easy to handle due to a high reflectivity of 99% and above in comparison to metal mirrors, and an equivalent mirror surface solidity to glass.
Features
- High reflectivity of 99 % at specific two wavelength
- Capability to use an incident angle range of 45 degrees
- High reflectance from both P and S polarized lights
- Almost no deterioration due to aging
- Capability to be used under high temperature and high humidity
- High CW laser proof stress due to almost no absorption loss in comparison to metal mirrors
Brochure
|
|
|
Typical Specifications
| Model |
MBMR-532&1064 |
| Wavelength Range |
532+/-10nm & 1064+/-10nm |
| Reflectance |
> 99% |
| Incidence Angle |
45 degrees |
| Size |
Φ30 x 5tmm |
| Substrate |
Quartz |
| Substrate Surface Precision |
λ/10 @ 632.8nm |
| Parallelism |
Within 3 minutes |
| Effective Diameter |
80% of the actual diameter |
|

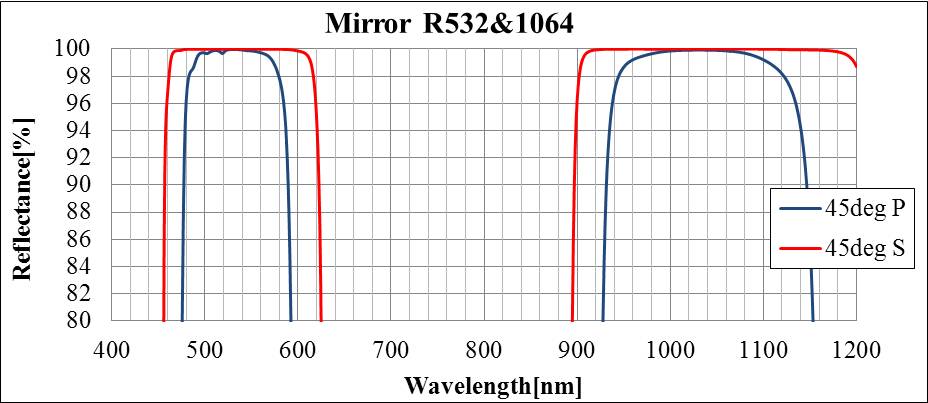

Wavelength Characteristics of Reflectance
* Wavelength Range: 532+/-10nm&1064+/-10nm
(Click to enlarge)
Ordering Instructions
|
- Multiband Multilayer Mirror |
|
1) Product: |
Multiband Multilayer Mirror |
|
Order format example: |
MBMR-532&1064-A |
| Wavelength |
532 & 1064: 532&1064nm |
| External Diameter of Substrates |
A: Φ30mm |
|
|
|
|
|
|
|
|
|
